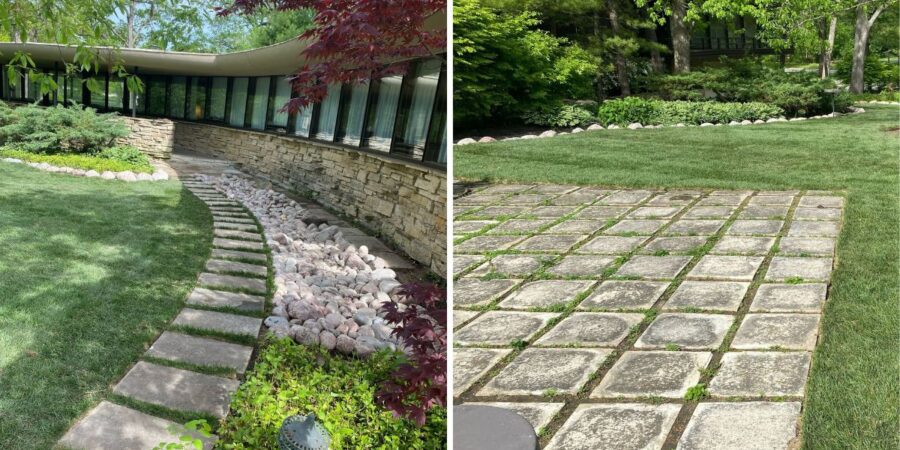

Barrington Backyard Drainage, Grading & Sod Restoration Project

What initially appeared to be a lawn issue was actually a combination of drainage, grading, water movement, and backyard layout problems all affecting each other. This backyard renovation project in Barrington was designed to solve the root causes of those issues while improving the overall function, flow, and usability of the property.

Project Improvements Included

• Relocation of the existing water bowl beneath the roof drain area
• Installation of a new backyard swale for natural surface water redirection
• Perforated 4-inch French drain system installation with gravel and filter fabric
• Installation of over 35 feet of solid PVC drainage piping
• Controlled water discharge routing for improved drainage flow
• Tunneling drainage beneath existing walkways to minimize disruption
• Reconstruction of the back patio landing using existing natural stone
• Resetting and leveling of existing backyard steppers
• Wisconsin boulder installation for splash control and erosion reduction
• Careful excavation around mature oak tree roots for tree preservation
• Backyard grading corrections to improve drainage and usability
• Installation of over 240 rolls of fresh sod for complete lawn restoration
• Professional Backyard Drainage Solutions

The drainage system was designed to collect both surface and subsurface water while improving overall water movement throughout the property. The combination of French drains, swales, solid PVC piping, and grading corrections helped eliminate problem areas where water was collecting and damaging the lawn.

Backyard Grading & Water Flow Improvements

Proper grading played a major role in restoring the backyard. Sections of the lawn were reshaped to improve drainage flow, reduce saturation, and create a more usable outdoor space. Every elevation adjustment was carefully planned to work together with the drainage system and surrounding landscape.

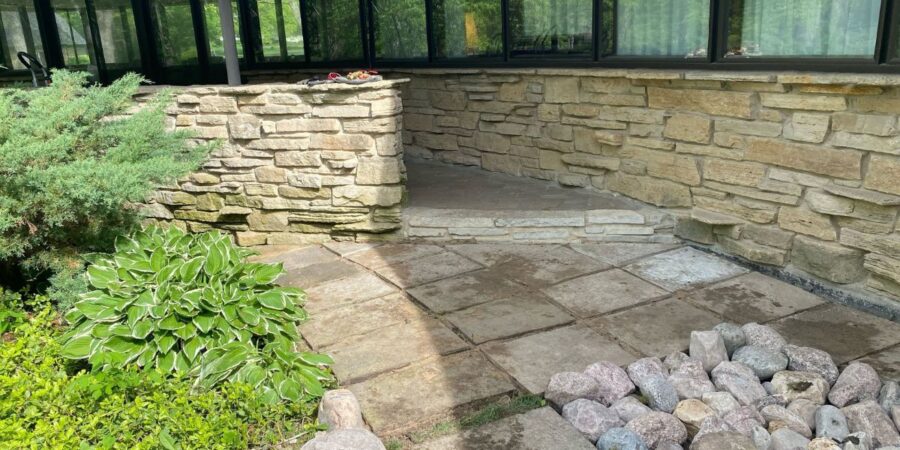

Patio Landing & Stepper Reconstruction

The landing off the back patio was rebuilt using the homeowner’s existing stone to maintain the original character of the space while improving functionality and stability. Existing backyard steppers were reset with improved spacing and elevation to create better flow throughout the property.

Lawn Restoration & Final Backyard Transformation

Once the drainage and grading work was complete, the backyard was restored with over 240 rolls of fresh sod, creating a healthier and more uniform lawn. The result is a backyard that drains properly, feels more connected, and functions far better from one side of the property to the other.

Why Complete Drainage & Grading Planning Matters

Projects like this work because every element is connected.

Key improvements included:

• Proper backyard drainage and water management
• Long-term grading corrections
• Improved backyard flow and usability
• Lawn restoration after excavation work
• Preservation of mature trees during construction
• Coordinated drainage and hardscape improvements

Many backyard problems are not caused by one issue alone. Drainage, grading, lawn health, and backyard layout often affect each other, which is why projects like this need to be approached as one complete system instead of separate repairs.

As you go through the project photos, you will see the excavation work, drainage installation, grading corrections, patio reconstruction, and final sod installation that completely transformed the property.

If your property has drainage issues, worn lawn areas, poor backyard flow, or grading problems, now is the perfect time to start planning improvements before the season fills up.



---
