Drainage System and Retaining Wall Installation in Prospect Heights, IL

This project in Prospect Heights, IL combined a complete drainage system upgrade with a new retaining wall around the deck. The improvements were designed to better manage roof and sump pump runoff, reduce water accumulation near the foundation, and add structural definition around the existing patio and deck area.

Project Goals

• Improve surface and subsurface water management.
• Replace the existing drainage system.
• Direct roof runoff away from the home’s foundation.
• Create a dedicated sump pump discharge system.
• Improve drainage at the low point of the swale.
• Add a durable retaining wall around the deck.
• Restore lawn areas disturbed during construction.

Drainage System Installation

The existing drainage system was replaced with a coordinated network combining French drains, perforated PVC, solid PVC piping, and tee discharge assemblies.

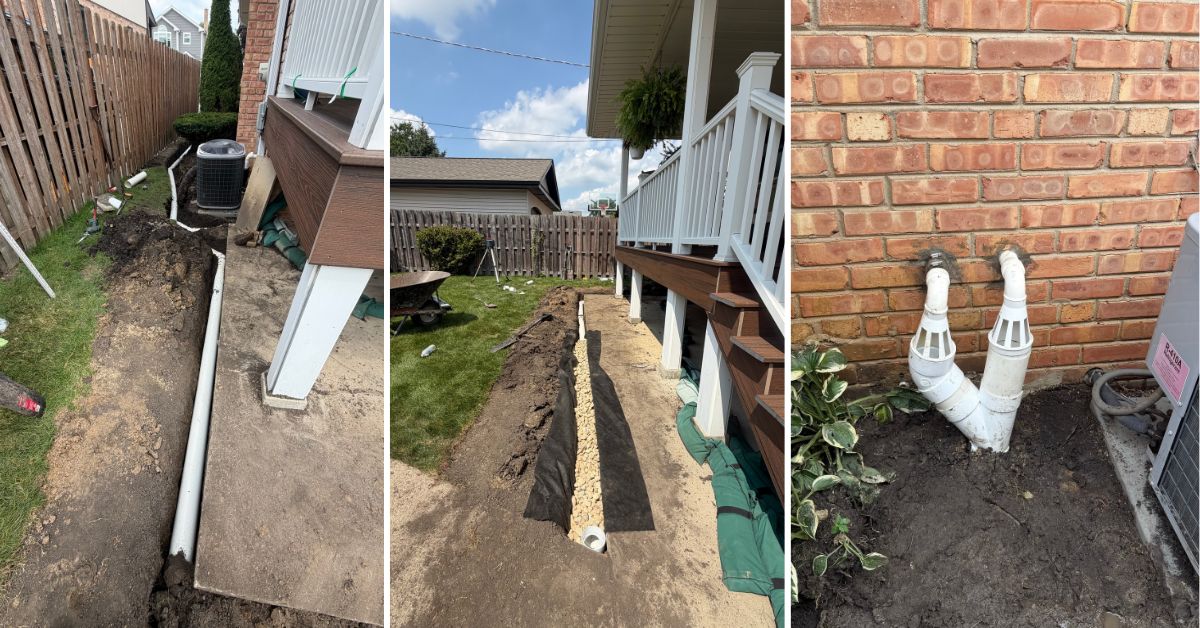

Install a French drain using 4-inch perforated PVC, landscape fabric, and river rock.
Connect the northwest downspout to the new underground drainage system.
Install approximately 102 linear feet of solid 4-inch PVC piping.
Install approximately 10 linear feet of perforated 4-inch PVC.
Direct collected water toward designated discharge locations.

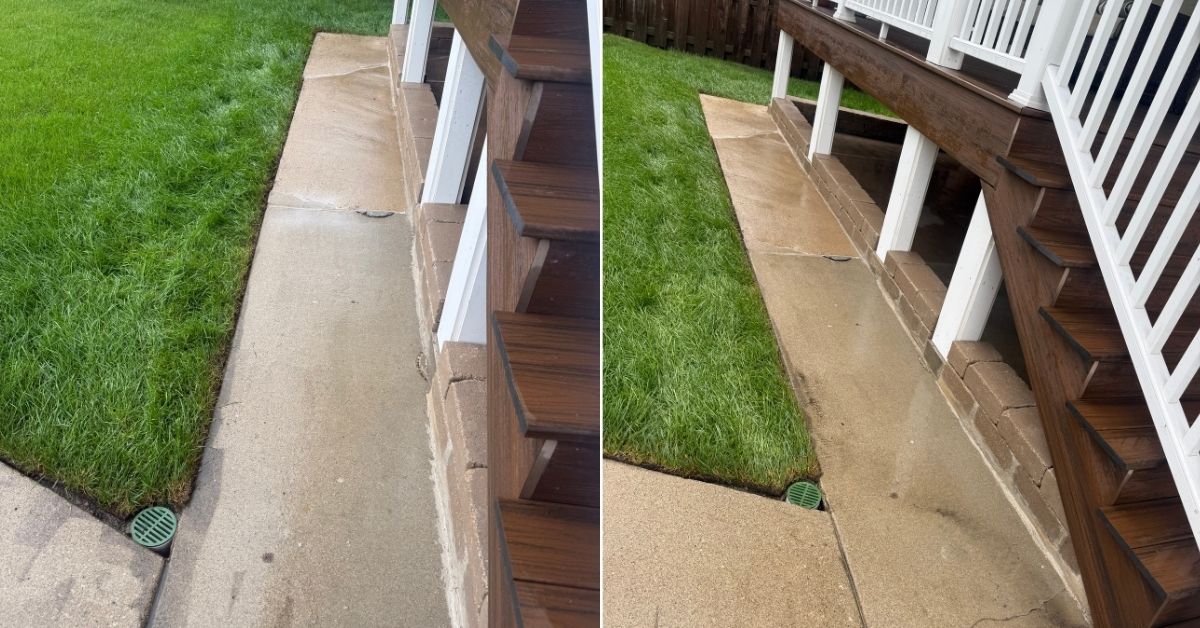

Install tee discharge assemblies with grate covers for controlled water release and easier maintenance.

Dedicated Sump Pump Drainage

A separate drainage line was installed specifically for the home’s sump pumps.

Combine the primary and secondary sump pump discharge lines.
Install approximately 80 linear feet of solid 4-inch PVC piping.
Keep sump pump discharge independent from the roof drainage system.
Terminate the system with a tee discharge assembly and grate cover in the front yard.

Retaining Wall Installation

A new retaining wall was constructed around the base of the deck to provide a clean, finished edge and improve the definition of the existing patio area.

Construct approximately a 6′ x 20′ retaining wall.
Wall height approximately 9 inches.
Install Sandstone Brussels pavers.
Build the wall directly over the existing patio.
Create a durable transition between the deck and surrounding hardscape.

Lawn Restoration

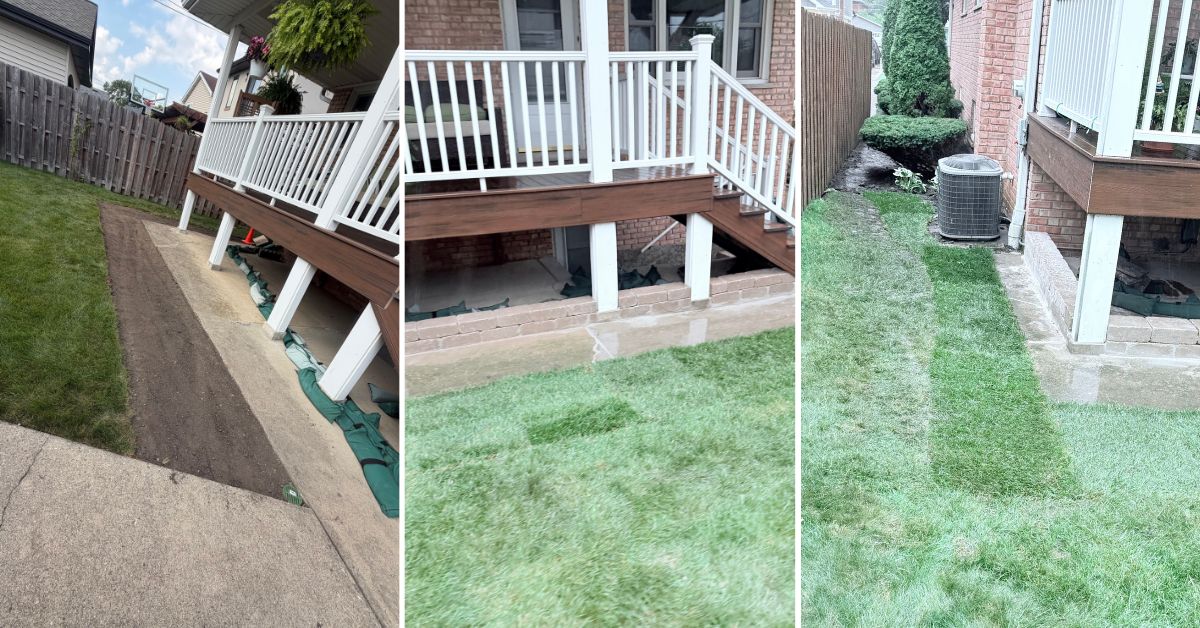

Approximately 10 rolls of sod were installed to restore lawn areas disturbed during the drainage installation. The finished lawn provides a clean appearance and completes the project around the newly installed drainage system.

Project Highlights

• Complete drainage system replacement.
• French drain installation.
• Solid 4-inch PVC drainage piping.
• Perforated PVC drainage pipe.
• Northwest downspout connection.
• Dedicated sump pump discharge system.
• Tee discharge assemblies with grate covers.
• Sandstone Brussels retaining wall.
• Deck-area retaining wall installation.
• Lawn restoration with new sod.
• Improved foundation drainage and water management.

The result is a property in Prospect Heights, IL with improved drainage, dedicated sump pump water management, and a new retaining wall that complements the existing deck and patio.

---
