Sump Pump Drainage System Installation in Deer Park, IL

This project in Deer Park, IL focused on improving the existing sump pump discharge system by extending the discharge line away from the home and surrounding landscaping. The new system combines solid and perforated PVC piping with a gravel drainage outlet to improve water dispersal.

Project Goals

Improve sump pump water discharge.
Direct water farther away from the home’s foundation.
Reduce water accumulation near the home and shrub line.
Create a controlled drainage outlet.
Improve long-term sump pump drainage performance.

Sump Pump Discharge Installation

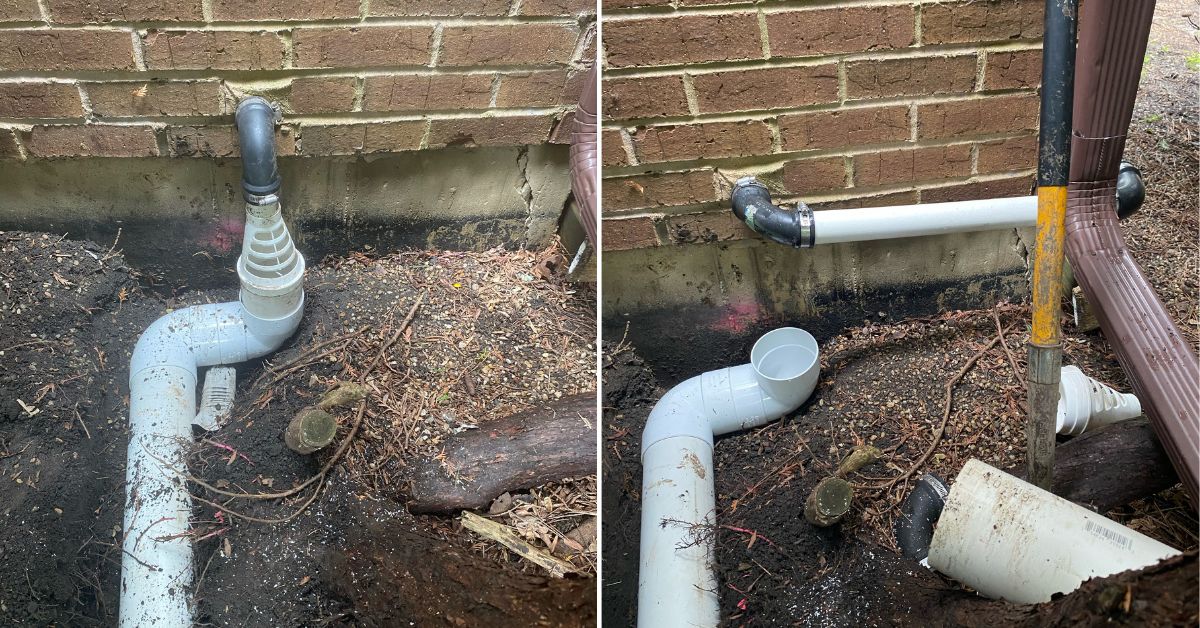

Attach an air gap to the existing sump pump discharge at the existing exit elbow.
Install a 4-inch PVC elbow to redirect the discharge approximately 3 feet toward the southwest corner of the home.
Install a second 4-inch PVC elbow to continue the drainage line approximately 5 feet toward the window well.
Install a third 4-inch PVC elbow to extend the line an additional 5 feet away from the home and shrub line.
Install a fourth 4-inch PVC elbow to transition into the underground drainage piping.

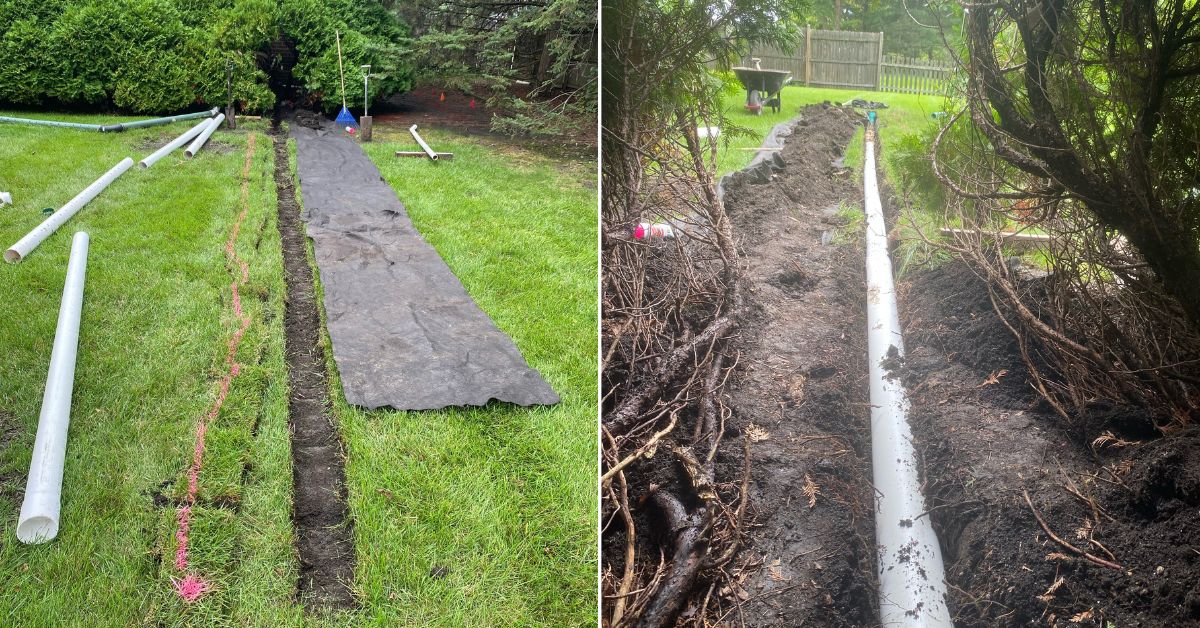

Install approximately 20 feet of solid 4-inch PVC pipe.
Connect approximately 10 feet of perforated 4-inch PVC pipe.
Terminate the system with a 4-inch T-fitting.
Install a grate over the T-fitting.

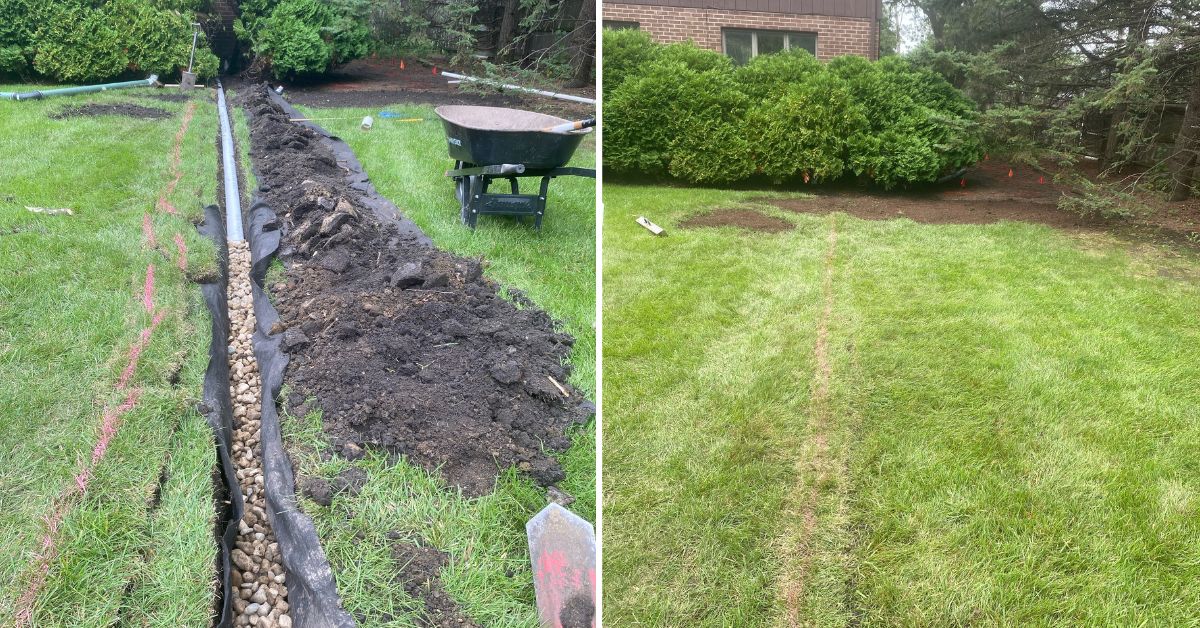

Surround the discharge area with gravel to promote proper water drainage and dispersal.

Project Highlights

• Existing sump pump discharge modification.
• Air gap installation.
• Multiple 4-inch PVC elbow connections.
• Approximately 20 feet of solid PVC piping.
• Approximately 10 feet of perforated PVC piping.
• T-fitting drainage outlet.
• Grated discharge point.
• Gravel drainage area.
• Improved water dispersal away from the home.

---
