5-Downspout Underground Drainage Installation in Long Grove

This drainage improvement project in Long Grove, IL focused on connecting five existing downspouts into a coordinated underground drainage system designed to collect roof runoff and move it farther away from the home. The project included approximately 150 linear feet of solid 4-inch PVC drainage piping extending northbound into the lawn, along with drainage gravel at the final portion of the system to support water dispersal at the discharge area.

Project Goals

• Connect five existing downspouts into one coordinated underground drainage system.
• Improve the collection and conveyance of roof runoff from multiple areas of the building.
• Extend drainage piping farther away from the home’s foundation.
• Install approximately 150 linear feet of solid 4-inch PVC piping.
• Extend the drainage system northbound into the lawn.
• Improve water dispersal at the end of the drainage run using drainage gravel.
• Create a coordinated drainage solution designed specifically for the property.

Downspout Drainage Connections

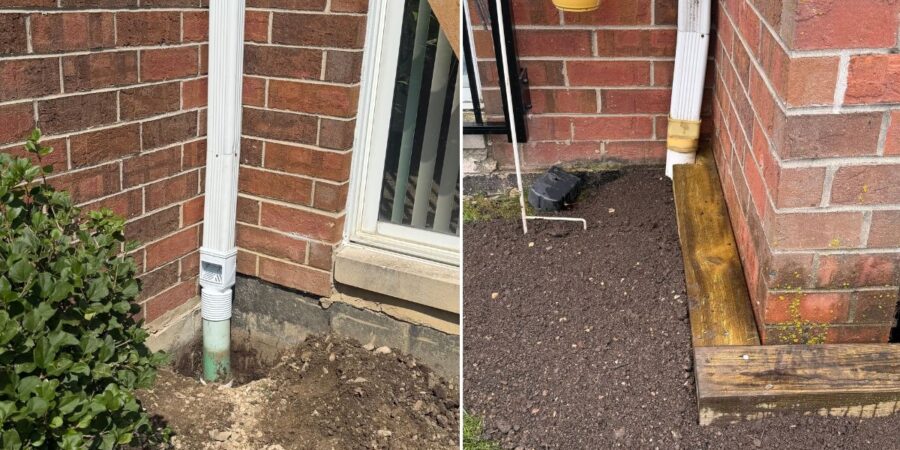

The project began with connecting five existing downspouts into a coordinated underground drainage system. Bringing the downspouts together allows roof runoff from multiple areas of the building to be collected and conveyed through a dedicated drainage network.

The system was designed to move collected water away from the home’s foundation rather than allowing concentrated roof runoff to remain close to the building.

Underground 4-Inch PVC Drainage System

Approximately 150 linear feet of solid 4-inch PVC piping was installed to extend the drainage system northbound into the lawn.

The underground PVC provides a dedicated path for water collected from the existing downspouts. Extending the piping farther into the property allows roof runoff to be conveyed away from the foundation and toward the designated discharge area.

Drainage Gravel & Water Dispersal

Drainage gravel was installed beneath the final portion of the PVC run at the discharge area. This gravel helps provide an area for water to disperse as it exits the underground drainage system.

The discharge area was incorporated into the surrounding lawn while maintaining the overall function of the drainage system and providing a practical endpoint for collected roof runoff.

Coordinated Drainage Design

Rather than addressing each downspout individually, the project created a coordinated underground system connecting multiple roof drainage points. This approach allows runoff from five existing downspouts to be managed through one organized drainage network.

The drainage system described represents a fully engineered solution specific to this property. Detailed schematics, routing plans, elevations, and construction sequencing are part of the proprietary construction documentation associated with the drainage design.

Why Downspout Drainage Matters

Downspouts can release significant amounts of roof runoff around the foundation when water is not properly conveyed away from the building. A coordinated underground drainage system provides a dedicated path for that water and helps reduce concentrated runoff near the home.

Extending the drainage system farther into the property can also improve overall water management by moving runoff toward a designated discharge area rather than allowing it to accumulate around the building or lawn.

Project Highlights

• Five existing downspouts connected to a coordinated underground drainage system.
• Approximately 150 linear feet of solid 4-inch PVC installed.
• Drainage system extended northbound into the lawn.
• Underground piping designed to convey roof runoff away from the home’s foundation.
• Drainage gravel installed beneath the final portion of the PVC run.
• Designated discharge area established for controlled water dispersal.
• Multiple downspouts integrated into one coordinated drainage network.
• System designed specifically for the property’s existing drainage conditions.

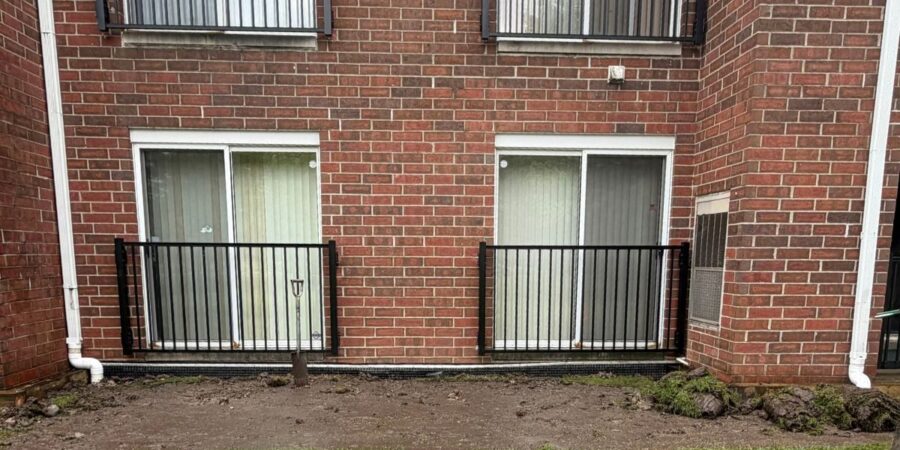

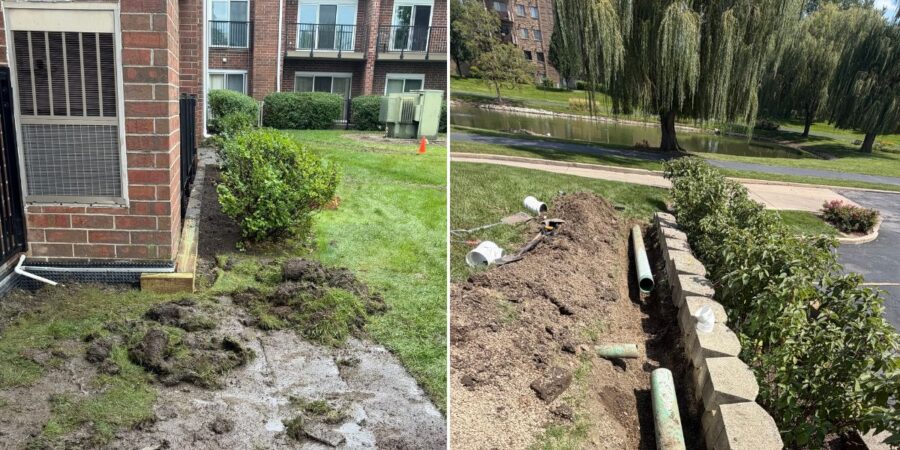

As you browse through the photos, you can see how the drainage improvements were incorporated along the north side of the building and extended into the lawn. The underground PVC system provides a dedicated route for runoff collected from the five existing downspouts, while the gravel discharge area provides a finished endpoint for the system.

The completed project provides the Long Grove, IL property with a coordinated underground solution for managing roof runoff from multiple downspouts. By extending the drainage piping away from the building and incorporating a dedicated discharge area, the system improves the overall organization and performance of the property’s drainage network.



---
