PVC Drainage System Improvements Project in Lake Zurich



Proper drainage is not only about collecting water—it is also about how that water is discharged. On this project in Lake Zurich, IL, the goal was to improve the performance of multiple existing drainage outlets by replacing traditional pop-up emitters with more reliable surface discharge assemblies and upgrading the underground drainage system for better water movement and easier long-term maintenance.

Project Goals

• Improve the performance of existing drainage discharge points.
• Replace pop-up emitters with open-access surface discharge assemblies.
• Increase maintenance accessibility for future cleaning and inspection.
• Improve water movement away from the home and hardscape areas.
• Enhance the overall efficiency of the underground drainage system.
• Southwest Drainage Improvements

The existing pop-up emitter at the southwest corner of the home was removed and replaced with a new surface discharge assembly.

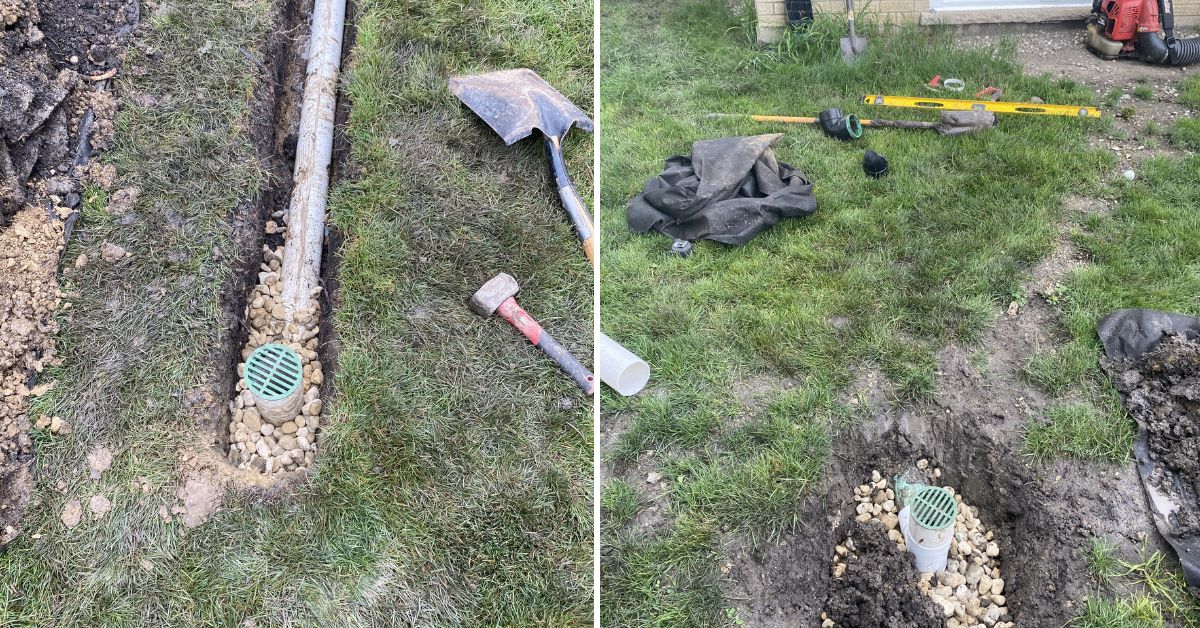

A 4-inch PVC tee with a gravel base and grate cover was installed to improve water dispersion, simplify maintenance, and provide easier access for future inspection.

The discharge elevation was adjusted to create a smooth transition with the surrounding lawn and improve surface drainage.

South Patio Drainage Improvements

Drainage improvements were also completed south of the patio to improve water movement away from the outdoor living area.

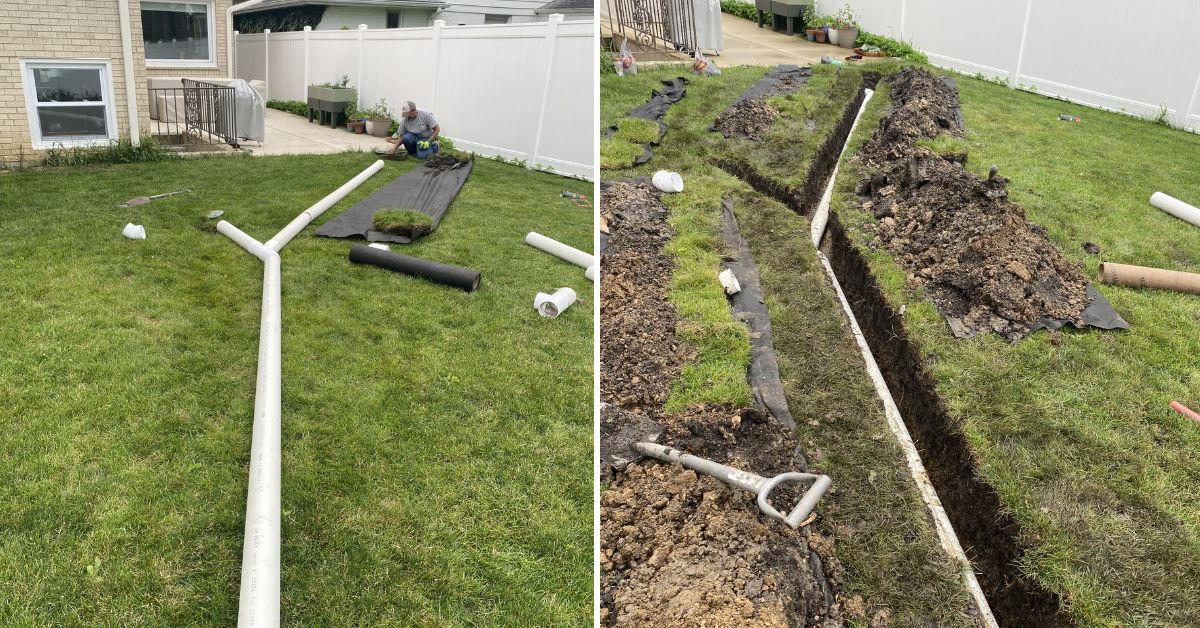

Approximately 28 linear feet of solid 4-inch PVC pipe was installed to extend the drainage system and connect multiple discharge points into one unified underground system.

A new PVC tee with a gravel base and grate cover was installed at the discharge location to provide controlled water release and improve long-term performance.

Northwest Drainage Improvements

At the northwest corner of the property, existing pop-up emitters were upgraded with new open-access drainage outlets.

New 4-inch PVC tee assemblies with grate covers and gravel bases were installed, and discharge elevations were adjusted to improve water flow while providing easier access for routine maintenance.

Why Drainage Outlet Upgrades Matter

Many drainage systems perform well underground but experience problems at the discharge point.

Replacing traditional pop-up emitters with accessible surface discharge assemblies helps improve water flow, reduces maintenance concerns, and makes future inspections much easier.

When combined with properly installed solid PVC piping and improved discharge elevations, these upgrades help create a more reliable drainage system designed for long-term performance.

Project Highlights

• Replacement of multiple pop-up emitters.
• Surface discharge assembly installation.
• 4-inch solid PVC drainage pipe installation.
• PVC tee connections with grate covers.
• Gravel drainage bases.
• Underground drainage system improvements.
• Improved water discharge efficiency.
• Enhanced maintenance accessibility.
• Long-term drainage performance.

As you go through the photos, you will see the drainage outlet upgrades, PVC pipe installation, discharge improvements, and final restoration as the project came together.

The result is a property in Lake Zurich, IL with a more efficient underground drainage system designed to move water away from the home more effectively while improving long-term reliability and ease of maintenance.



---
