French Drain Installation & Swale Grading Project in Wilmette, IL

This drainage improvement project in Wilmette, IL focuses on addressing water accumulation in the area between the home and the fence. The work combines rough and fine grading, swale construction, and a French drain system to collect surface and subsurface water and direct it from west to east, away from the home’s foundation.

The project includes installing approximately 90 linear feet of four-inch perforated PVC drainage pipe, two surface inlets and cleanouts, landscape fabric, and drainage stone. Existing square steppers will be temporarily removed to allow access for the drainage and grading work, while the existing river rock in the designated dog run area will be removed to prepare for pea gravel. Once the drainage system and grading are complete, landscape fabric will be installed over the finished soil in preparation for the final landscape surface.

Project Goals

• Improve drainage between the home and fence.
• Temporarily remove and set aside existing square steppers during construction.
• Remove existing river rock from the designated dog run area in preparation for pea gravel.
• Rough grade the affected area and establish a swale to direct surface water from west to east.
• Install approximately 90 linear feet of French drain using four-inch perforated PVC.
• Incorporate landscape fabric and drainage stone around the perforated pipe.
• Pitch the French drain to provide positive drainage from west to east.
• Install two four-inch surface inlets and cleanouts for water collection and maintenance access.
• Fine grade the swale to create a consistent drainage path toward the designated discharge area.
• Install landscape fabric over the finished soil in preparation for the final landscape surface.

Existing Stepper Removal & Site Preparation

The project begins with temporarily removing the existing square steppers and setting them aside. This provides access to the affected area so the grading and drainage components can be installed without interfering with the existing stepping-stone layout.

The designated dog run area will also be cleared of its existing river rock. The removed material will be disposed of as specified, preparing the area for pea gravel as the intended replacement surface.

These initial steps open the work area for excavation, grading, and French drain installation. Setting the steppers aside also allows them to be kept available for placement after the drainage work, where appropriate.

Rough Grading & Swale Construction

Rough grading will establish the initial elevations needed to improve surface water movement between the home and fence. A swale will be formed through the affected area to help guide surface runoff from west to east, away from the structure.

A swale is a shallow, graded channel that provides a defined route for water to travel across the ground surface. Rather than allowing runoff to collect in isolated low spots, the intended grading creates a more consistent path toward the designated discharge area.

Establishing the swale before installing the drainage components is an important part of coordinating surface water management with the underground system. The grading and French drain will work together to address water moving across the surface as well as water moving through the soil.

French Drain Installation

Approximately 90 linear feet of French drain will be installed using four-inch perforated PVC piping, landscape fabric, and river rock. The system is intended to collect surface and subsurface water throughout the affected area and support its movement along the planned west-to-east route.

Perforated PVC allows surrounding water to enter the drainage pipe, while the surrounding drainage stone creates a permeable area that helps water reach the pipe. Landscape fabric is incorporated around the drainage materials to help limit soil migration into the aggregate.

The French drain will be pitched to provide positive drainage from west to east. Its alignment will be coordinated with the grading and swale so the underground collection system complements the intended surface water flow.

Surface Inlets & Cleanout Access

Two four-inch surface inlets and cleanouts will be installed as part of the drainage system. These components provide additional collection points for surface water while also creating access for future inspection and maintenance.

Surface inlets help direct runoff into the drainage system, while cleanout access can assist with checking the piping and addressing maintenance needs when required. Their placement is part of the overall drainage layout and will be coordinated with the French drain route.

Including these access points supports the system’s intended function and provides practical access for future maintenance.

Fine Grading & Drainage Path Completion

After the drainage components are installed, the surrounding swale will be fine graded to establish a more consistent surface and drainage path toward the designated discharge area.

Fine grading helps refine the ground elevations established during rough grading. This step is important because small changes in surface contours can influence where runoff travels and whether water continues to collect in low areas.

The finished swale will work alongside the underground French drain to guide water from west to east. Together, the surface and subsurface drainage measures are intended to reduce water accumulation in the affected area and direct water away from the home.

Landscape Fabric & Final Surface Preparation

Landscape fabric will be installed over the finished soil throughout the designated area in preparation for the final landscape surface. This follows the grading and drainage installation, allowing the area to be prepared for its subsequent finish.

Within the French drain, landscape fabric serves a different purpose: it helps separate the surrounding soil from the drainage aggregate and reduce soil migration into the stone. Across the finished soil surface, the fabric provides a prepared base for the planned landscape treatment.

The existing river rock in the dog run area will be removed as part of site preparation for pea gravel. The final surface materials will be coordinated with the completed grading and drainage work.

Coordinating Surface & Subsurface Water Management

This project combines three complementary approaches to drainage: surface grading, swale construction, and underground water collection. The swale is intended to guide runoff across the ground, while the French drain collects water from the surrounding soil and conveys it along the planned route.

The two surface inlets and cleanouts provide additional collection and maintenance access. Meanwhile, the drainage stone and landscape fabric help create a contained drainage assembly around the perforated pipe.

By coordinating these components, the Wilmette project addresses water movement throughout the space between the home and fence rather than relying on a single drainage feature. The system is designed to improve water collection and direct it toward the designated discharge area.

Why Proper Drainage & Grading Matter

Water accumulation around a home can be influenced by surface elevations, soil conditions, and the way runoff moves through the landscape. When ground contours do not provide a consistent drainage path, water may remain in low areas or collect near the structure.

Grading and swale construction help establish a surface route for runoff, while a French drain provides an underground collection path for water moving through the soil. Combining these methods allows the drainage plan to address both surface and subsurface conditions.

The performance of a drainage system depends on the site’s elevations, installation details, soil conditions, and the ability of the designated discharge area to receive water. This project is designed to coordinate those elements to improve drainage between the home and fence.

Project Highlights

• Residential drainage improvements in Wilmette, IL.
• Temporary removal and setting aside of existing square steppers.
• Removal and disposal of existing river rock in the designated dog run area in preparation for pea gravel.
• Rough grading between the home and fence.
• Swale construction to guide surface water from west to east.
• Approximately 90 linear feet of four-inch perforated PVC French drain.
• Installation of landscape fabric and drainage stone around the perforated pipe.
• Two four-inch surface inlets and cleanouts for collection and maintenance access.
• French drain pitched to provide positive drainage from west to east.
• Fine grading to establish a consistent drainage path toward the designated discharge area.
• Landscape fabric installed over finished soil in preparation for the final landscape surface.

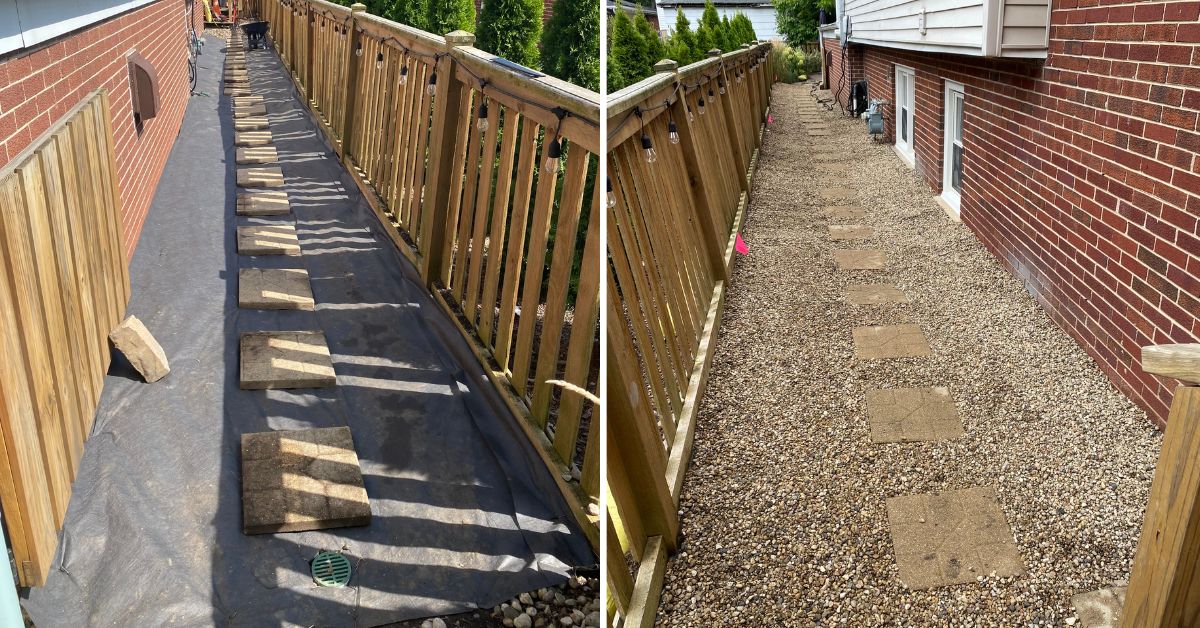

As you browse through the photos, you can see the stages involved in preparing the area for improved drainage, from temporarily moving the existing steppers and clearing the dog run surface to grading the swale and installing the French drain components. The inlets, cleanouts, drainage stone, and landscape fabric each contribute to the planned system.

This Wilmette project brings together surface grading and underground drainage to address water accumulation between the home and fence. The finished drainage layout is designed to guide surface runoff from west to east, collect subsurface water, and prepare the affected landscape areas for their final surface treatment.



---
